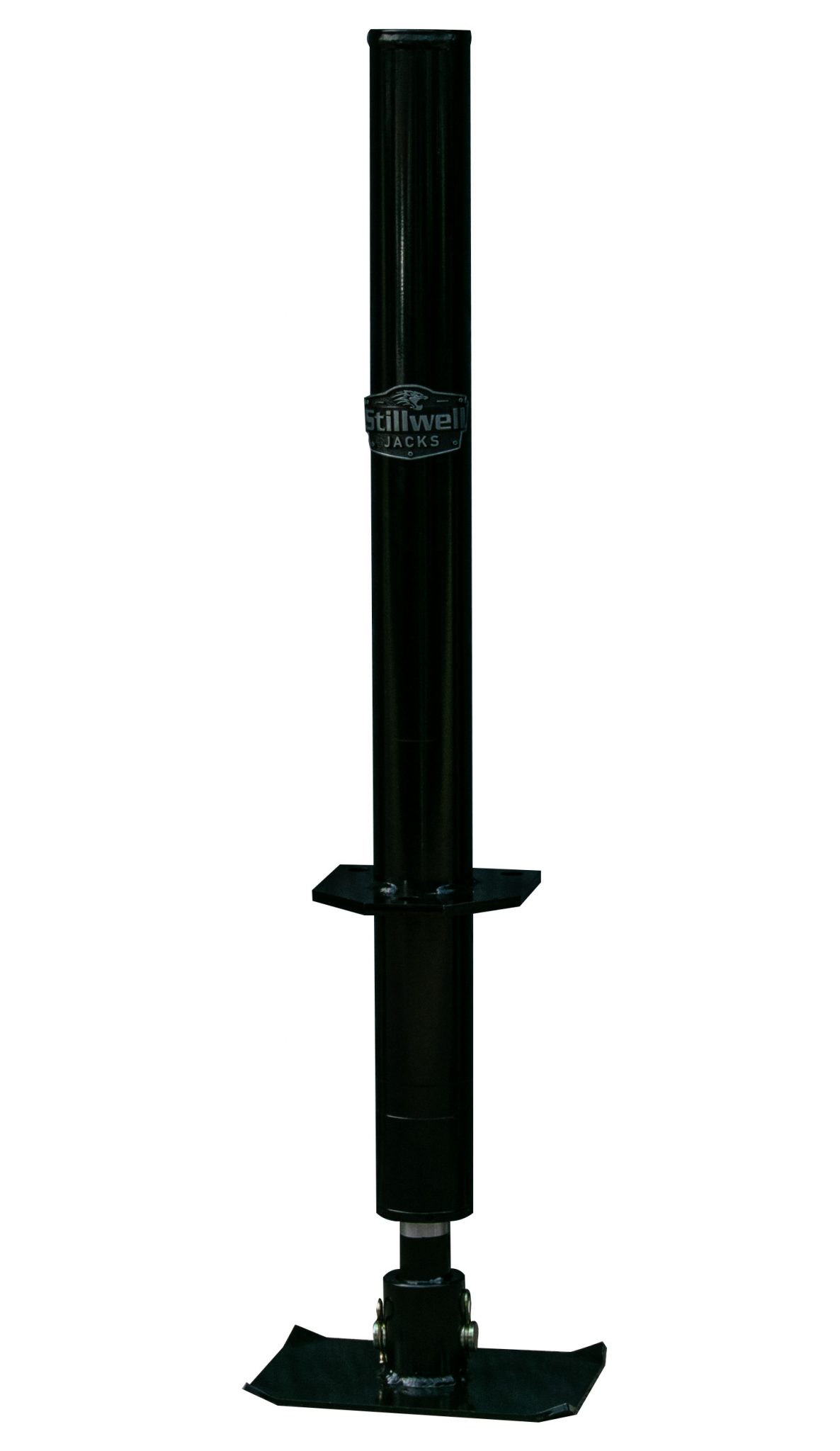

Tradesman: 7K Hydraulic Trailer Jack
Standardized Design Without Sacrificing Quality
The Tradesman has been a dependable hydraulic solution for the mobile equipment industry for years. A work horse initially designed for bumper pull dump trailers has been adapted for a variety of applications.
The Tradesman has an A-Frame bolting patter that has been adapted to fit many different applications. Using steel components machined and welded, the Tradesman has a rugged design built to last. Our components are sourced from the top suppliers in the hydraulic and steel industry, backed by years of research the Tradesman is designed for real working conditions.
- 7,000 pound lifting capacity
- 24″ of stroke
- Bolt-on A Frame Design
Customizable to your application! The Tradesman 7K Hydraulic Trailer Jack is a versatile product and is sure to satisfy any user. With a variety of kit configurations, you are sure to find the perfect fit for your needs. For more pricing or information, please Contact Us.
How to Choose the Right Jack For You?
Hydraulic trailer jacks are a high-speed, durable alternative to the standard crank style trailer jacks used on trailers. With a wide range of applications, hydraulic trailer jacks rely on a hydraulic power unit to lift and level the trailer. Each jack is designed with a different weight rating based on the size of the piston and the operating pressure (P.S.I.) of the hydraulic power unit.
Stillwell offers a wide variety of hydraulic trailer jacks to fit any application. Whether it’s a bumper pull trailer, horse or livestock trailer, or equipment trailer, we have the perfect jack to fit your needs. To select the appropriate hydraulic trailer jack for your application, please consider the following:
Heavy duty equipment trailers will need a greater load holding capacity than a bumper pull cargo trailer. Each hydraulic trailer jack can be fitted with manifolds and other accessories to assist in their optimal functioning. Trailer models such as a dump trailer will utilize the neXgen 6 Port Ball Valve to tie a hydraulic trailer jack to the existing hydraulic dump circuit using the same hydraulic power unit.
The Gross Trailer Weight Rating (GTWR) is combination of the weight of the trailer and the approved pay load as established by the manufacturer. Knowing the GTWR will allow you to calculate the tongue weight of the trailer. The standard tongue weight of a conventional ball-mounted hitch is roughly 10 to 15 percent of the GTWR. For a gooseneck or fifth wheel trailer the tongue weight will fall between 15 and 30 percent.
Most Stillwell Jacks can be outfitted with a bolt on style mounting bracket and powder coat finish. Options can be manufacturer specific or the optional universal bracket design. Some styles of hydraulic trailer jacks offer a manufacturers option (OEM) that allows for welding and finishing directly to the trailer.
FAQ’S
Yes. You will need to drill or cut a slot for the feeder tube out of frame.
It is possible to weld the tradesman in place, if you grind the paint off the welding surface. However, failure to recoat the product in paint can lead to rust.
